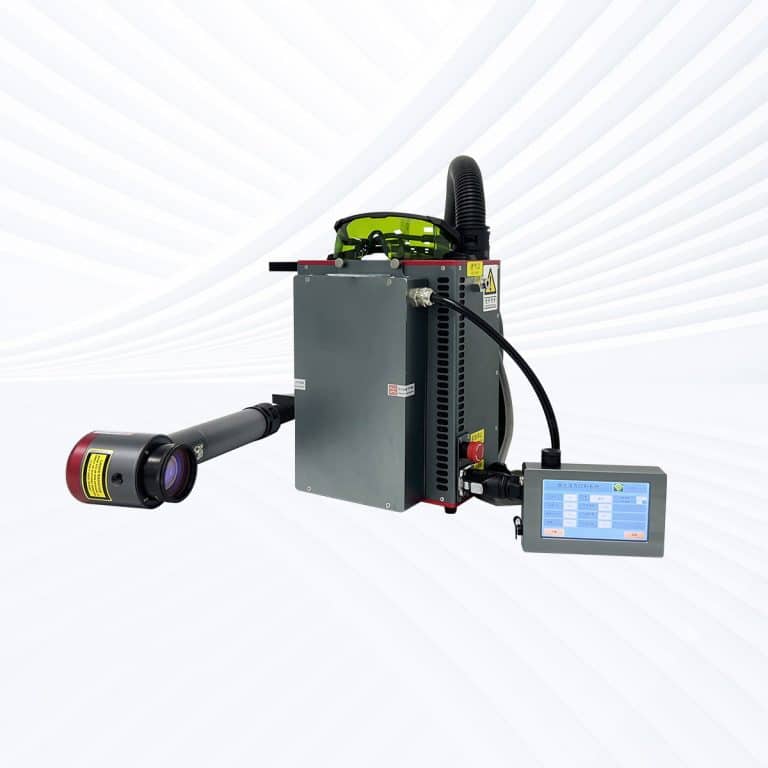

100W Backpack Pulse Laser Cleaning Machine

The backpack design laser cleaning machine has the advantages of light weight, portability, and wireless control. Pulse laser cleaning has higher precision, no damage to the substrate, and can efficiently remove rust, stains, oil stains, coatings, etc. on the surface of the workpiece.

Model:AKQ-100 / AKQ-200 / AKQ-300
Category:Laser Cleaner and Laser Welder
View: Times
Brand:ACCTEK
Rating:

/ 10
price:$6500--$8800/Set
Lead time:10-18 working days
Customized features:vailable

NO	Description	Parameter
1	Model	AKQ-100 / AKQ-200 / AKQ-300
2	Laser Power	100W / 200W / 300W
3	Laser Working Mode	Pulsed
4	Expected Focal Distance(mm)	160mm
5	Fiber Length (m)	1.5M
6	Cooling Type	Air Cooling
7	Power regulation range(%)	10-100(Gradient adjustable)
8	Maximum Single Pulse Energy	1.5mj
9	Scanning Mode	8 Scanning Modes
10	System Language	8 Language Switching
11	Input Power	220V, 50/60H
12	Mobile mode	Handheld
13	Power Consumption (W)	＜500W
14	Measurement(mm)	213123/168339
15	Main Engine Weight(Including laser cleaning head)	8.5kg
16	Power Supply	Lithium Battery Design (Optional)

Machine features

This pulse laser cleaning machine adopts a backpack design, which is light and easy to carry, making the cleaning work more convenient.
Pulse type high-precision cleaning, light pattern can be set, with 8 scanning modes to achieve selective cleaning of precise position and size.
The handheld laser cleaning machine designed with a backpack can efficiently remove rust, stains, oil stains, coatings, etc. on the surface of the workpiece. It is suitable for industries such as mechanical processing, restoration of cultural relics, and mold cleaning.

100W Backpack Pulse Laser Cleaning Machine

Backpack Design

Backpack design, the total weight of the machine is 8.5kg, light and easy to carry, more conducive to outdoor work.

The backpack laser cleaning machine can be installed with batteries, which is more convenient.
Handheld Laser Cleaning Head

Handheld design, small and light, can be used by hand for a long time.

Integrated design of button and handle, easy to operate and convenient to use.
MAX 100W MOPA Fiber Laser

MOPA laser has the characteristics of independently adjustable pulse width and frequency.

It can maintain stable peak power output and adapt to a wider range of cleaning scenarios.

200W/300W fiber laser is available.
Wireless Control Screen

The compact controller is as easy to operate as a mobile phone.

Wear the control panel on your wrist like a watch, which is convenient for adjusting parameters and will not lose it.

Applications

Backpack Design Laser cleaning machine has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear, aluminum plate, paint layer and other materials.
Portable Pulsed Laser cleaning machine can be used to clean oxide layer, surface paint removal treatment; clean surface oil, stains, and dirt; clean rubber mold residue.
Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.

Acctek's after-sales

1 to 3 years guarantee of the whole machine.
Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
Lifetime maintenance free of charge.
Our staff can be sent to your company to install or adjust if necessary.
technical support online whole life
